Map & controls

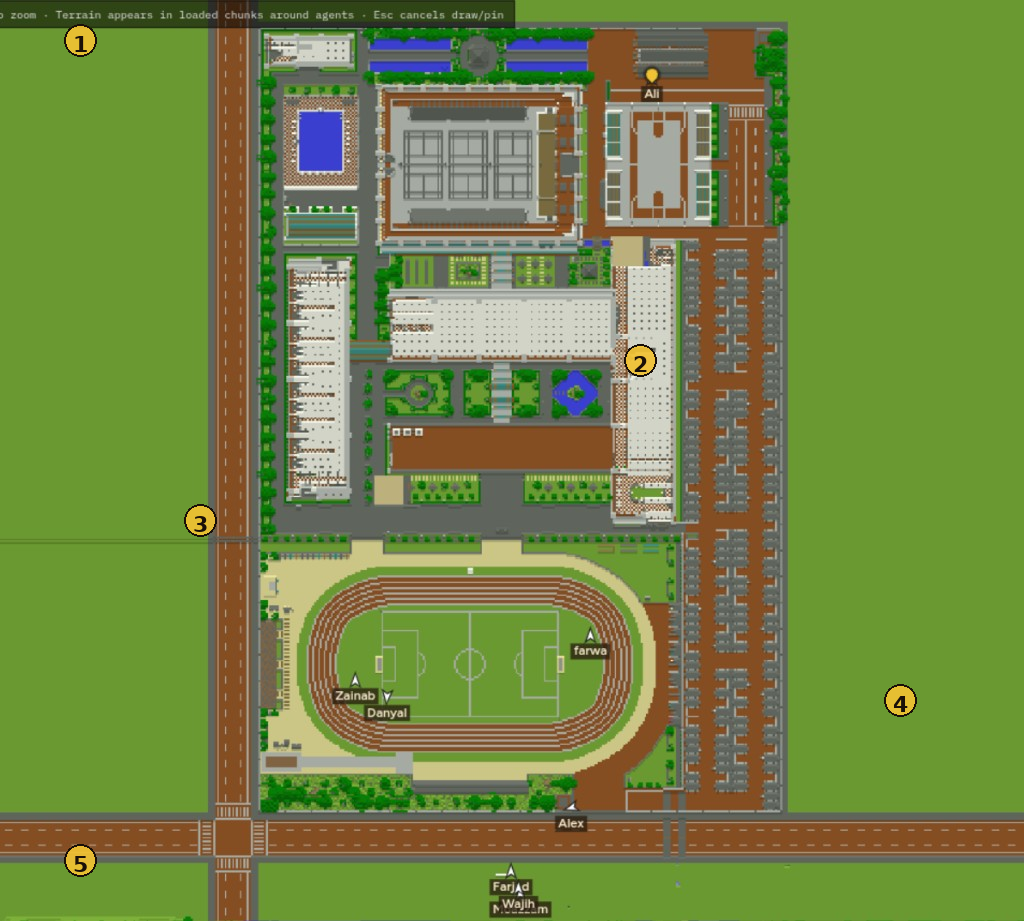

The center column is a top-down X/Z map of the Minecraft world. Agents appear as labeled markers. Terrain fills in as chunks load around bots.

#	Element	Notes
1	Map hint bar	Pan / zoom reminders; Esc cancels pin or square-draw
2	Loaded terrain	Blocks the bot has seen (surface colors)
3	Agent markers	Name + facing; Follow keeps them centered
4	Open / empty areas	May still be parchment until visited or preloaded
5	Roads / landmarks	Useful for pinning spawn points

---

Top bar

#	Control	Effect
1	Brand	Observer identity
2	Status + tick + tps + coords	Connection state, t=current / max, tick rate, camera center
3	Config / Chat / Follow	Toggle sidebars; Follow centers the camera on agents
4	− / + / speed menu	Change ticks per second (or Max)
5	Pause · Step · ×10 · +1k	Freeze, advance while paused, raise max tick budget

Keyboard

Key	Action
Space	Pause / resume
.	Step 1 tick
Shift + .	Step 10 ticks
+ / −	Faster / slower
F	Toggle Follow
Esc	Cancel spawn pin or boundary draw

---

Moving the camera

• Drag the map to pan.
• Scroll to zoom (you can zoom far out when drawing a large preload square).
• Follow (on by default) tracks the agent centroid; turn it off to free-look.
• Pan range starts at --map-radius from home (default 512). Preload can expand it.

uv run simulatecraft --map-radius 1024

---

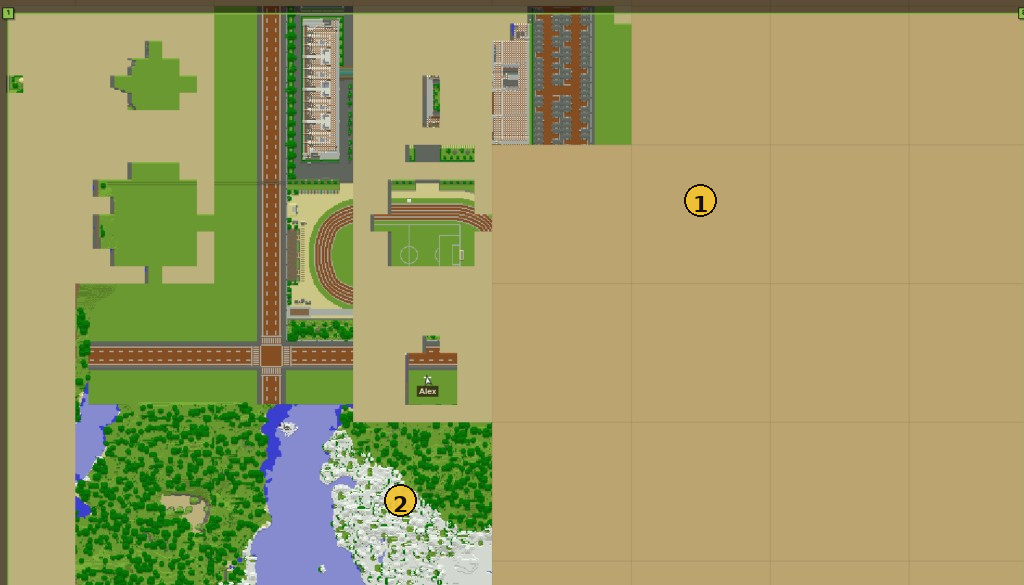

Why some tiles are blank

#	Meaning
1	Tan / parchment tile — chunks not loaded for the scanning bot yet
2	Mixed coverage — retry / mop-up usually fills these
3	Agent standing on loaded terrain nearby

Fix: draw a square over the area → Configure → Boundaries → Preload map. Scout bots load chunks; your agents stay put. Re-run Preload to mop up leftovers.

See World → Preload map.

---

Simulation speed tips

• Use Pause + Step when debugging a single decision.
• High tps + many agents burns LLM quota quickly — start at 1×.
• +1k only raises the max tick budget; it does not speed up time.

Next: Agents
